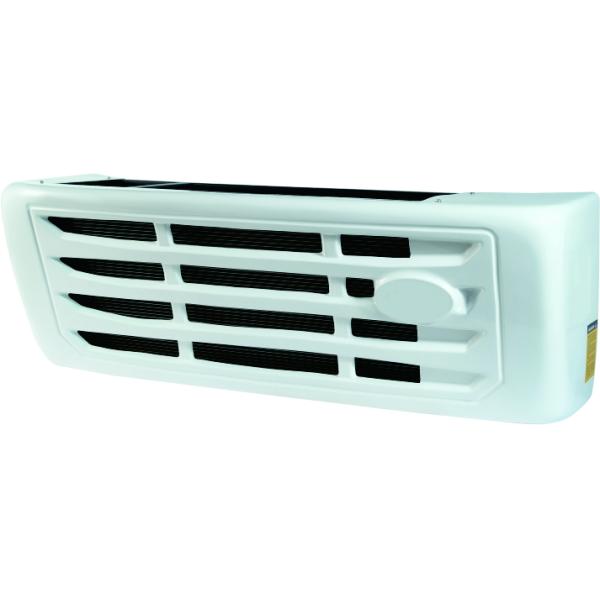

HT-880 Truck Refrigeration Unit with 7500W Cooling Capacity for 40 m³ Box Volume and Parallel Flow Condenser

  • 1
  • 2

Brand Name : Yinhuasheng/OEM

Model Number : HT-880

Certification : CE

Place of Origin : China

MOQ : 1SET

Price : Negotiable

Payment Terms : TT/LC

Supply Ability : 1000 sets per month

Delivery Time : Negotiable

Packaging Details : Negotiable

Model : HT-880

Temperature Range : -25°C To +25°C

Cooling Capacity(0℃) : 7500W

Cooling Capacity(-18℃) : 4765W

Application Box Volume : ≤40 m3

Outside Temperature : 30°C To 50 °C

Compressor Brand : Guangyu

Compressor Mode : GY21

Compressor Displacement : 209 CC

Condenser : Parallel Flow Condenser

Evaporator : Inner grooved copper tube&aluminum Fin

Contact Now

HT-880 Truck Freezer Unit Refrigeration System for Cold Chain
Designed for 40m³ refrigerated trucks, the HT-880 refrigeration unit provides reliable temperature control for transporting chilled and frozen goods including food, medical supplies, produce, and seafood. Engine-driven for efficient operation with low service costs.
Key Features
  • Direct engine drive system for efficient power transfer
  • Eco-friendly refrigerant options (R404A standard, R134a available)
  • Corrosion-resistant FRP canning material for durability
  • Aluminum fin parallel flow condenser for optimal heat exchange
  • Inner grooved copper tube evaporator with protective design
  • High-performance R404a compressor system
  • User-friendly digital display control panel
  • Comprehensive safety protection with HP/LP switches
  • Hot gas automatic defrost system
  • Easy installation and maintenance
  • Ideal for long-distance transportation
Product Images
HT-880 Truck Refrigeration Unit with 7500W Cooling Capacity for 40 m³ Box Volume and Parallel Flow Condenser HT-880 Truck Refrigeration Unit with 7500W Cooling Capacity for 40 m³ Box Volume and Parallel Flow Condenser
Technical Specifications
Parameter Specification
Model HT-880
Operating Temperature Range -25°C to +25°C
Recommended Box Volume ≤40m³
Cooling Capacity (0℃/+30℃) 7500 W
Cooling Capacity (-18℃/+30℃) 4765 W
Compressor Model GY21/JS32
Compressor Displacement 209/328 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 3 PCS
Condenser Material Parallel flow condenser
Condenser Fans 3 PCS
Refrigerant R404a
Refrigerant Charge 3.3KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrost System Hot gas defrost automatically
Evaporator Weight 37 KG
Condenser Weight 55 KG
Evaporator Dimensions (mm) 1240*600*345
Condenser Dimensions (mm) 1480*500*510
Drive Model Non-independent engine driven
OEM customization available - Contact us for specific requirements and configurations to meet your transportation needs.
